Fantech Rapid Response Fan Kit - Fan, 6m Duct and Grilles
The Rapid Response ceiling mounted header box fan kit comes with the Rapid Response 250HP. It is the quietest and most powerful in its class. Its aerodynamic and fully optimised design minimises air flow resistance and produces powerful, efficient performance. Click here for fan information.

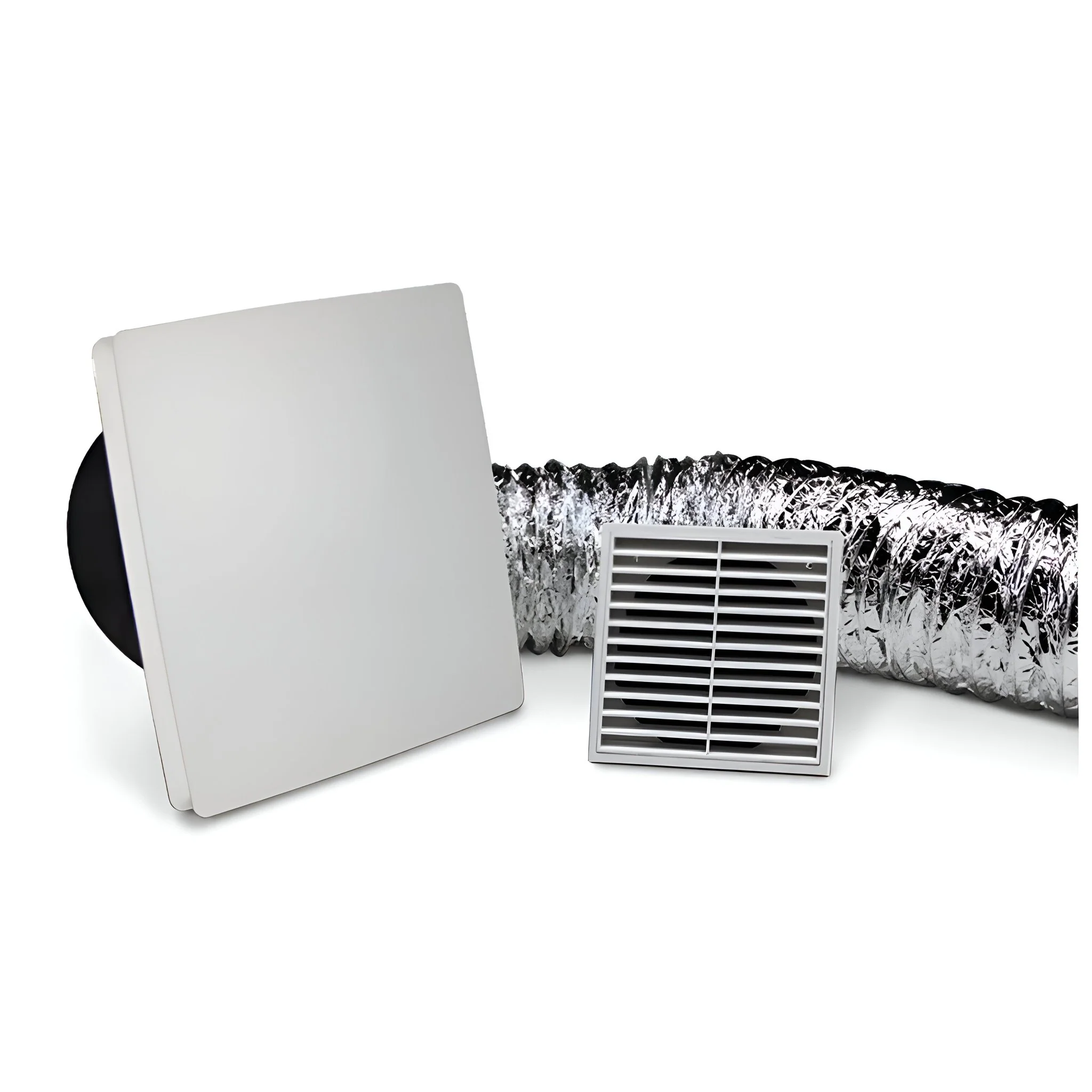

Kit Includes
- Rapid Response 10″ Header Box Fan (RESPF150)
- Rapid Response 10″ square white grille (RESPG150SQWH)
- 150mm diameter Flexible Duct 6m (DUCT150-6M)
- 150mm diameter Plastic Fixed Louvre Grille with fly wire mesh (External Grilles)
- 1x Packet of 4 screws and wall plugs (for external grille)
- 2x 540mm cable ties
- 4x Duct Clips
Code: RCK150

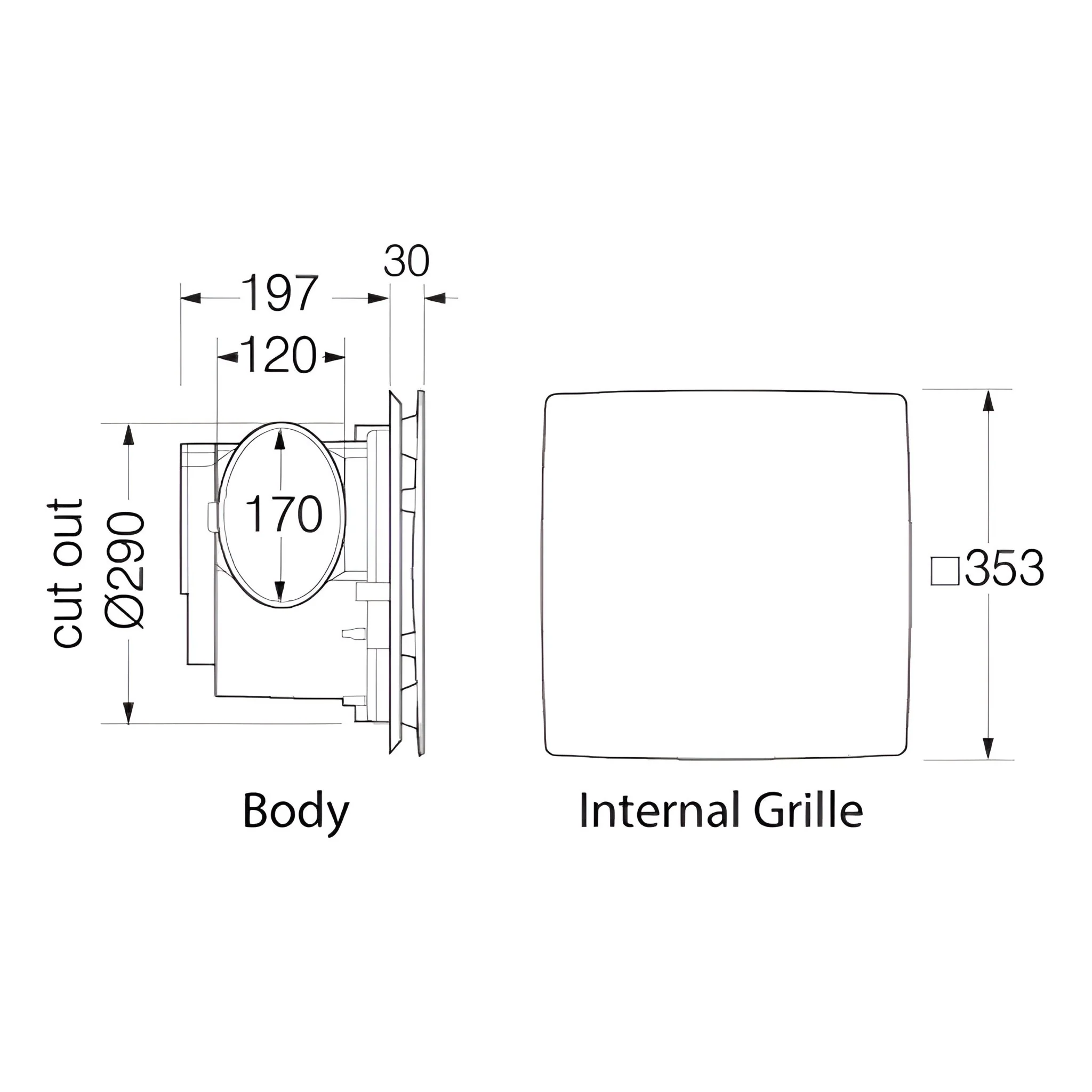

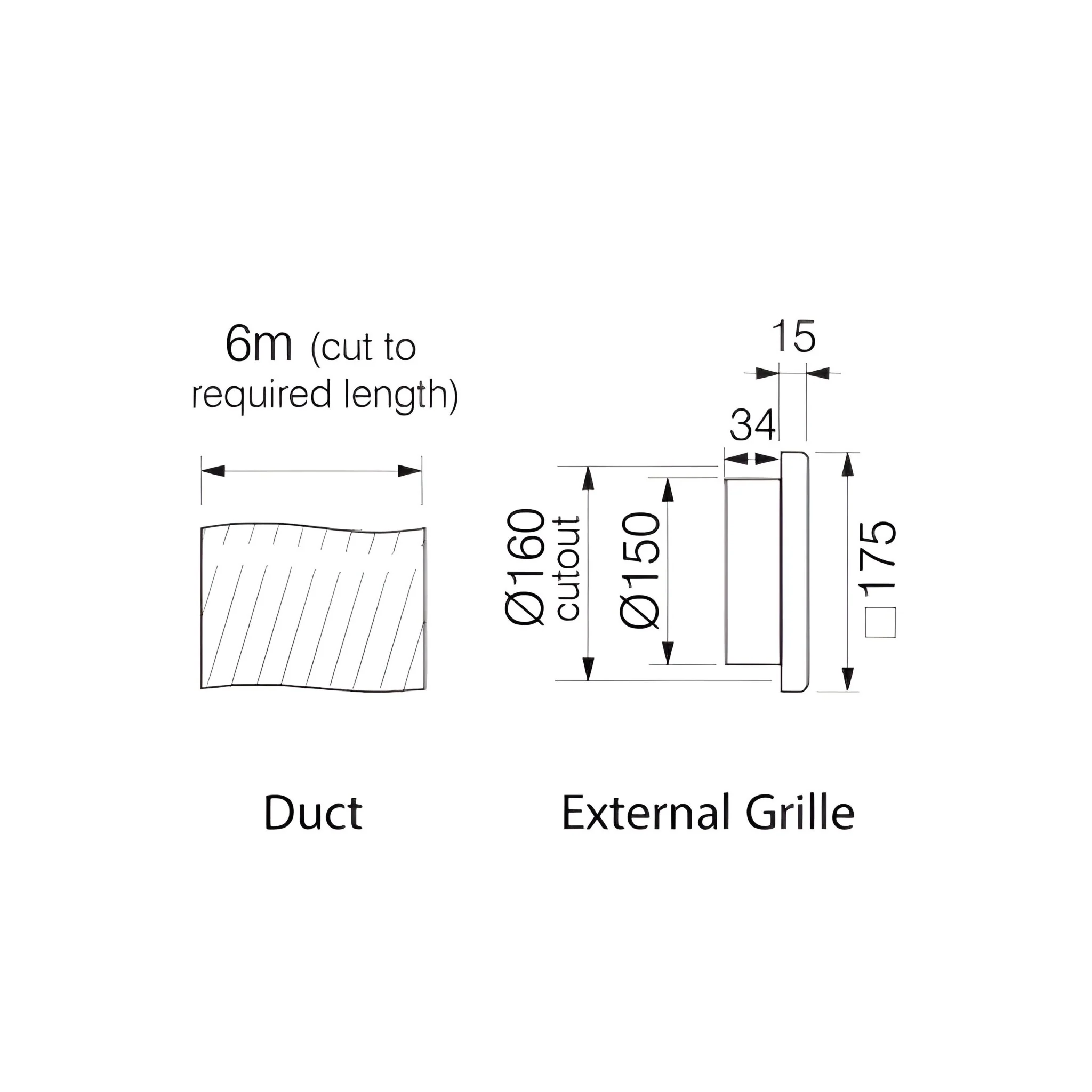

Dimensions:
| Internal Grille | External Grille | |
| Cutout | Ø290mm | Ø160mm |
| W | 197mm x H: 353mm | 34mm x H: 175mm |
Technical Data
| Model No. | Air Flow m³/hr† | Air flow L/sec† | Fan Speed rpm | AVG. dB(A) @ 3m | Watts | Volts |
|---|---|---|---|---|---|---|
| RESPF150 | 349 | 97 | 950 | 37 | 60 | 230-240 |
Datasheet : (Click here).
$63.94
Original: $182.68
-65%Fantech Rapid Response Fan Kit - Fan, 6m Duct and Grilles—
$182.68
$63.94
Description
The Rapid Response ceiling mounted header box fan kit comes with the Rapid Response 250HP. It is the quietest and most powerful in its class. Its aerodynamic and fully optimised design minimises air flow resistance and produces powerful, efficient performance. Click here for fan information.
Kit Includes
- Rapid Response 10″ Header Box Fan (RESPF150)
- Rapid Response 10″ square white grille (RESPG150SQWH)
- 150mm diameter Flexible Duct 6m (DUCT150-6M)
- 150mm diameter Plastic Fixed Louvre Grille with fly wire mesh (External Grilles)
- 1x Packet of 4 screws and wall plugs (for external grille)
- 2x 540mm cable ties
- 4x Duct Clips
Code: RCK150
Dimensions:
| Internal Grille | External Grille | |
| Cutout | Ø290mm | Ø160mm |
| W | 197mm x H: 353mm | 34mm x H: 175mm |
Technical Data
| Model No. | Air Flow m³/hr† | Air flow L/sec† | Fan Speed rpm | AVG. dB(A) @ 3m | Watts | Volts |
|---|---|---|---|---|---|---|
| RESPF150 | 349 | 97 | 950 | 37 | 60 | 230-240 |
Datasheet : (Click here).
